Looptec

PW and WFI recirculation and sanitization management system

• Pump accessibility

  Open on four side, to be easily accessible for maintenance

• Customized filter

  Wall-mounted filter to improve ergonomics for operators

• Special heat exchanger

  Electrical resistances to reduce environmental impact

• Complete Solutions

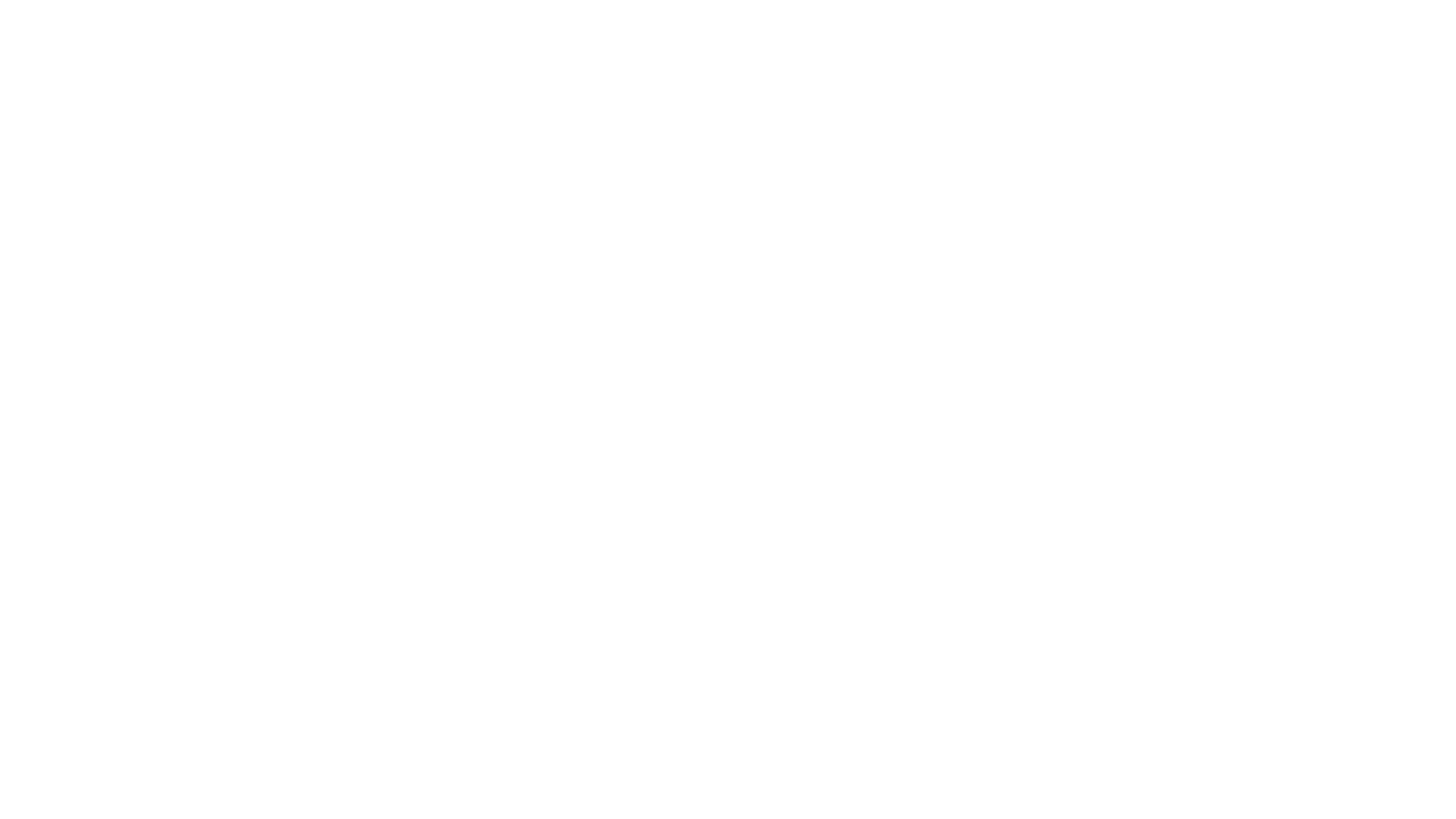

  LOOPTEC is a PW, HPW and WFI recirculation and sanitization management system complying with cGMP, USP and EP guidelines, designed with capacity range of 2.000-30.000 l/h.

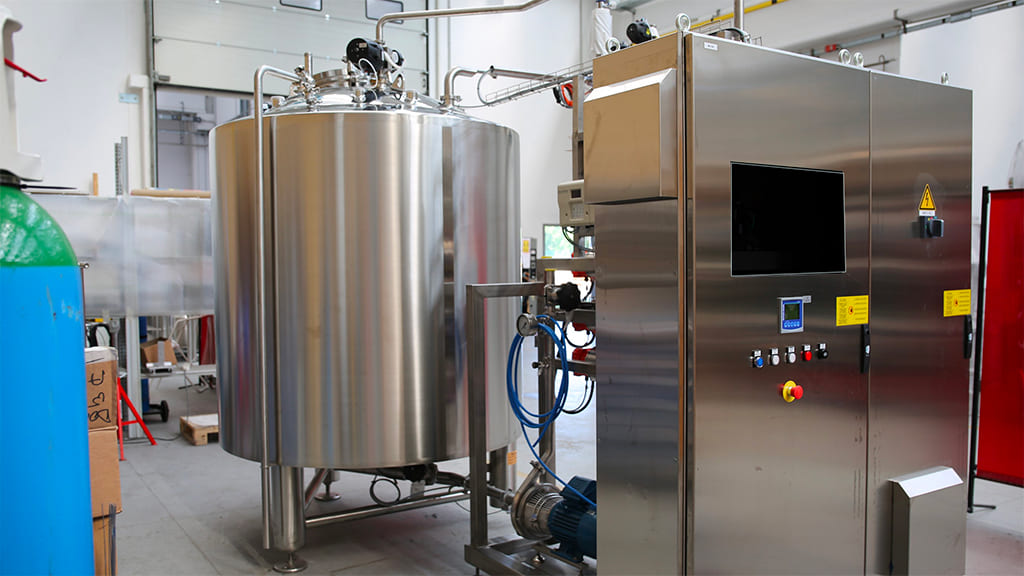

  LOOPTEC is a compact unit, pre-assembled, pre-validated and including all the equipment as recirculation pump, heat exchanger, process parameter instrumentation as well as the automation control panel. The system can be adapted to cold water ozone sanitization, in this case it’s equipped with ozone generator, UV lamp, ozone detection and sensor for 3-detection points.

  The purpose of LOOPTEC is to supply a unique assembled machinery equipped with instrumentation generally collocated and installed in the water treatment room.

• Principle of Operation

  Inlet water continuously recirculates in the distribution loop (temperature between 80°-85°C). While operating, the system monitors storage tank status, the recirculation pump and critical parameters.

  Periodical sanitization of PW/WFI storage and distribution system is basilar to preserve quality parameters required by pharmacopeia guidelines. Sanitization can be implemented by adding disinfecting chemical products (LOOPTEC AF); with hot water at 80°C for PW Loop or 121° for WFI Loop (LOOPTEC AC); with ozone and UV lamp (LOOPTEC Ozone).
